DEN5 Data Center Build

The SiTESPAN team, in partenership with CAC Architects, Michaud Cooley Erickson, and Thornton Tomasetti, provided the design for a new, state-of-the-art data center in San Francisco, CA. Together, the team completed the basis of design documentation through permit documents.

Project Details

Owner
Confidential Data Center Company
Location
Littleton Colorado
Type
Colocation Data Center
Role
Construction

Colocation data center design

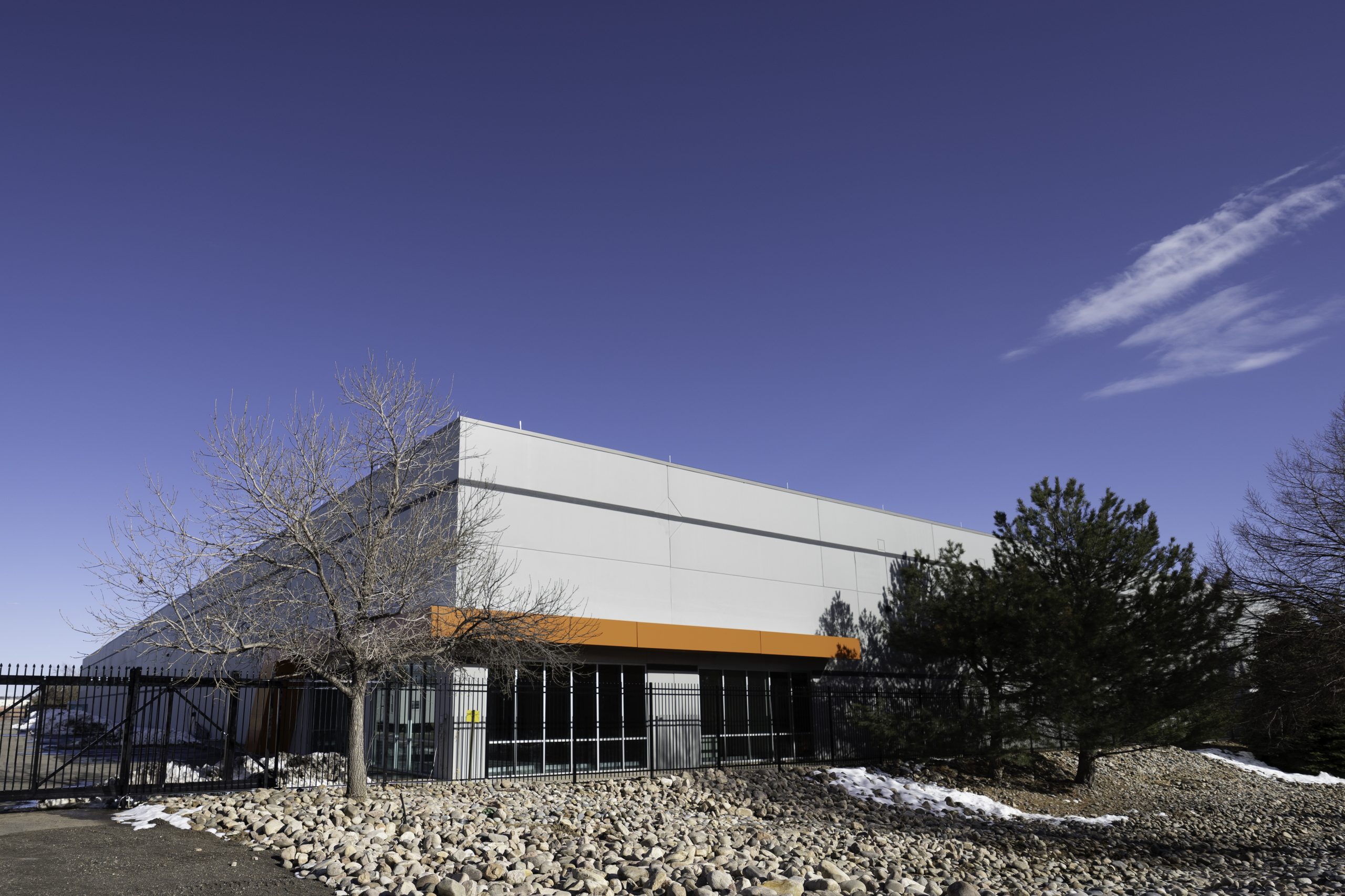

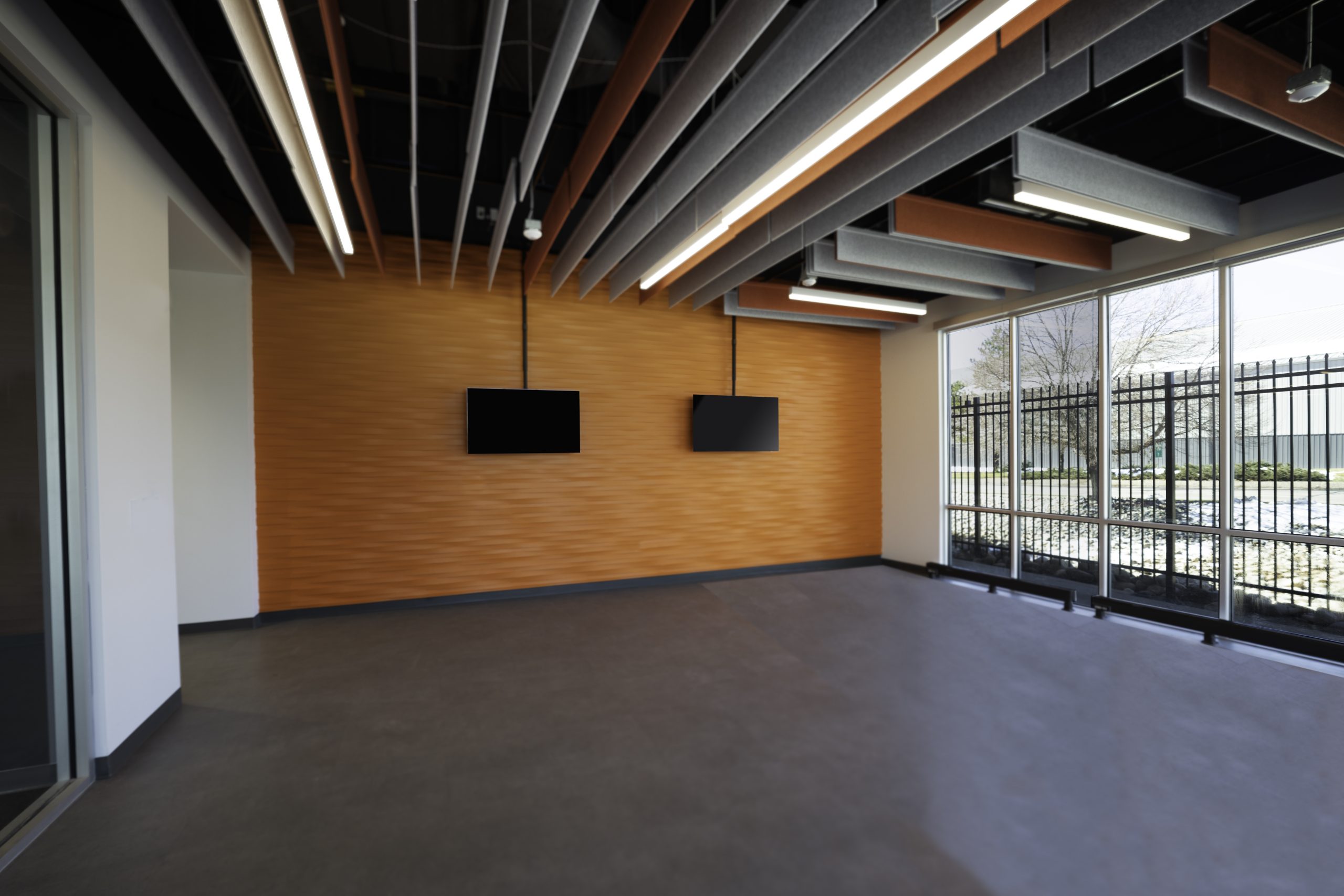

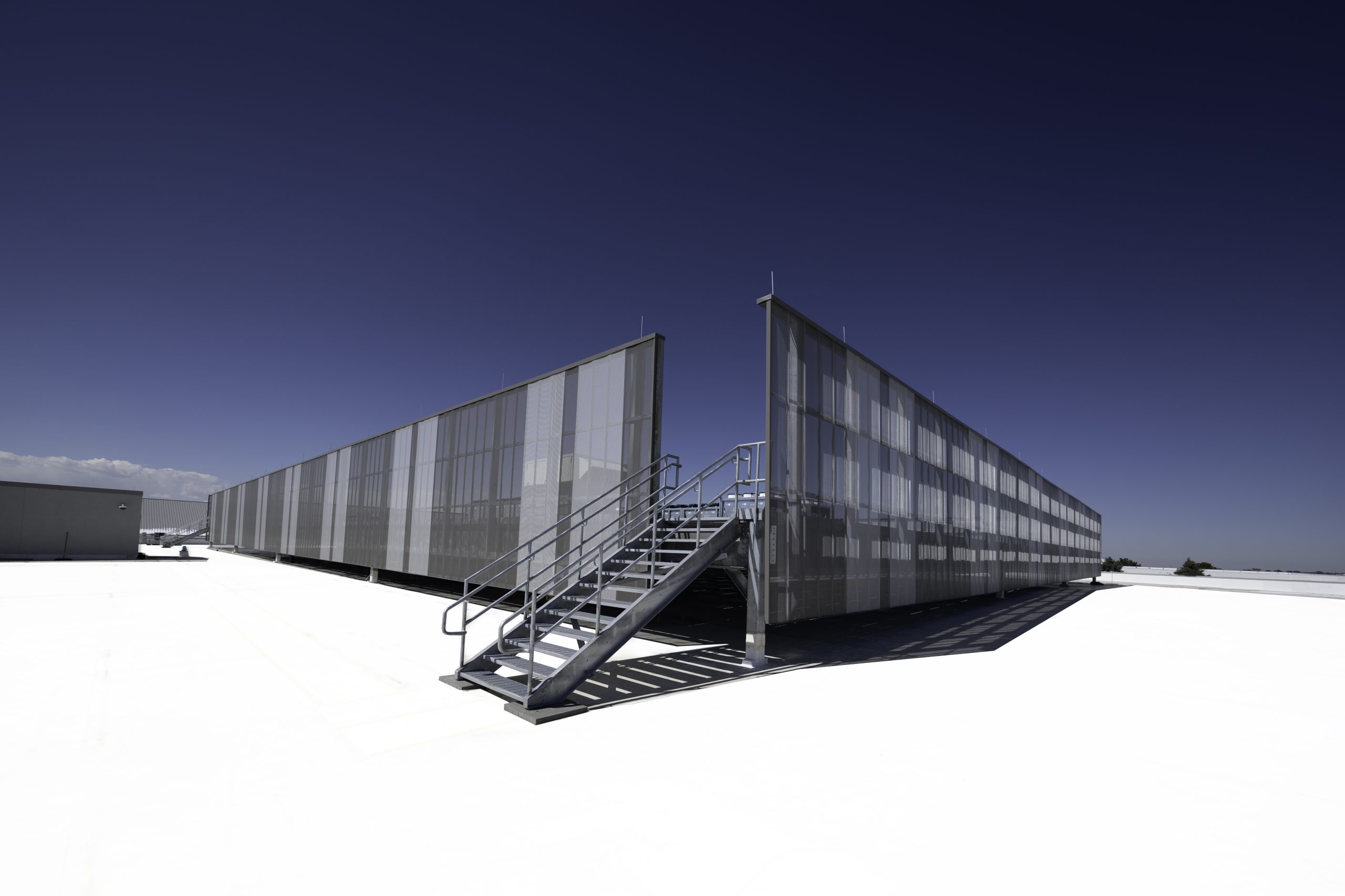

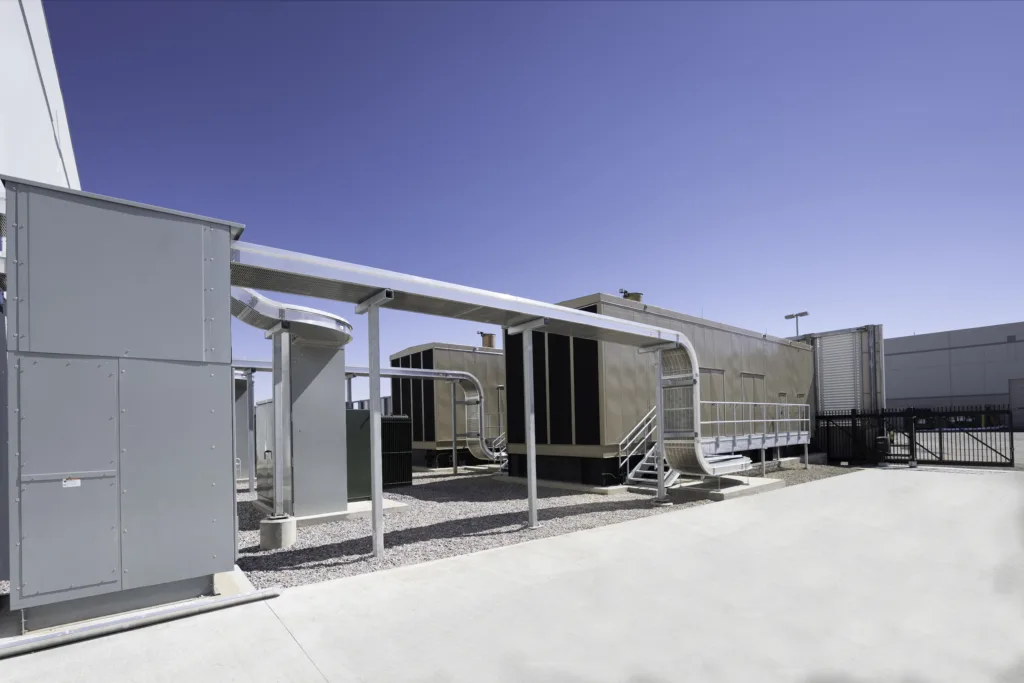

SiTESPAN transformed a 107,000 SF warehouse into a state-of-the-art data facility. The scope included demolition of the existing parking area and construction of a new equipment yard and screen wall to house 11 critical power generators. A 25,000 SF data hall was built with raised access flooring, two MMR rooms, power rooms, and office space. Structural upgrades reinforced existing steel columns and the roof to support a rooftop dunnage platform for mechanical equipment, including CRAC condensing units.

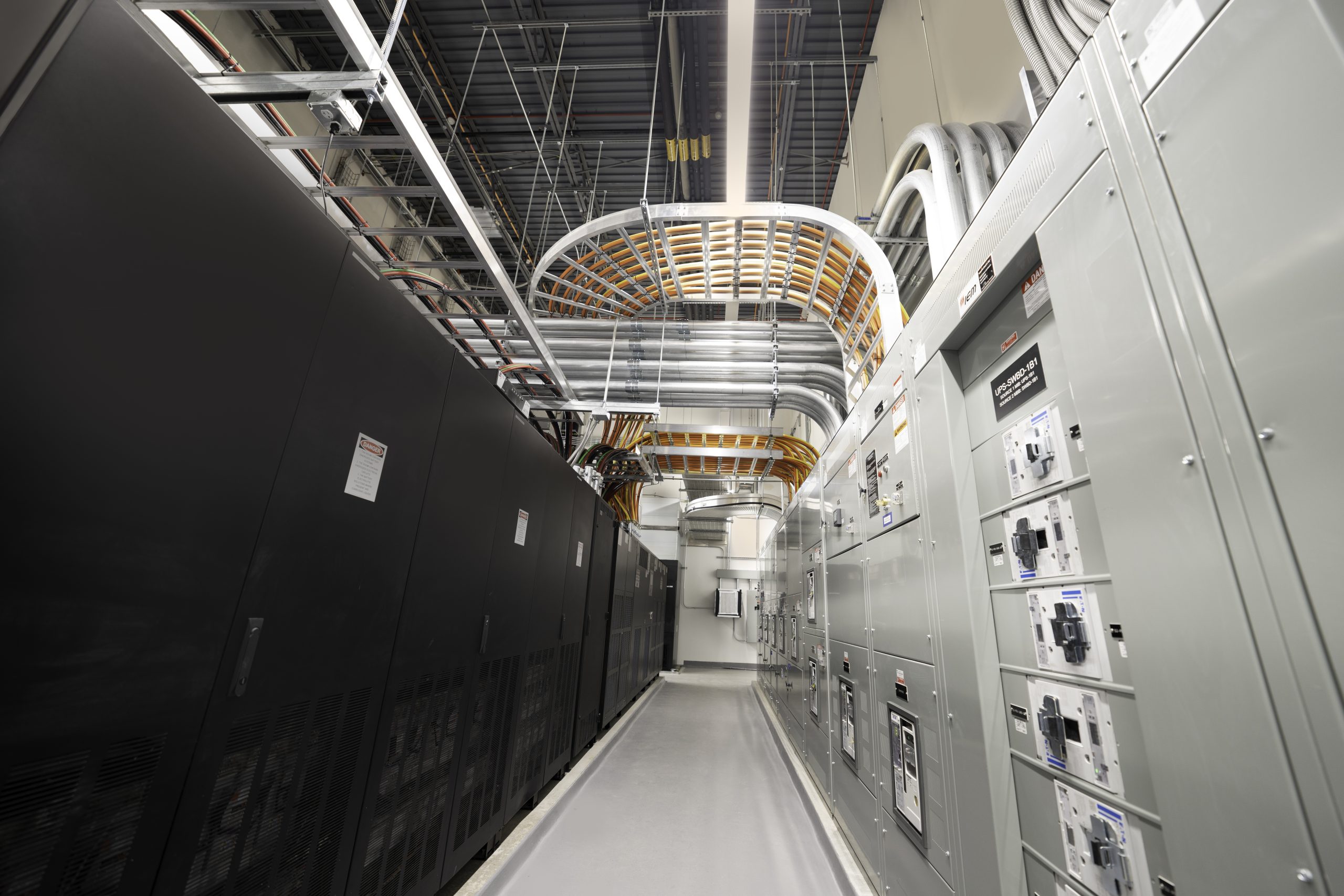

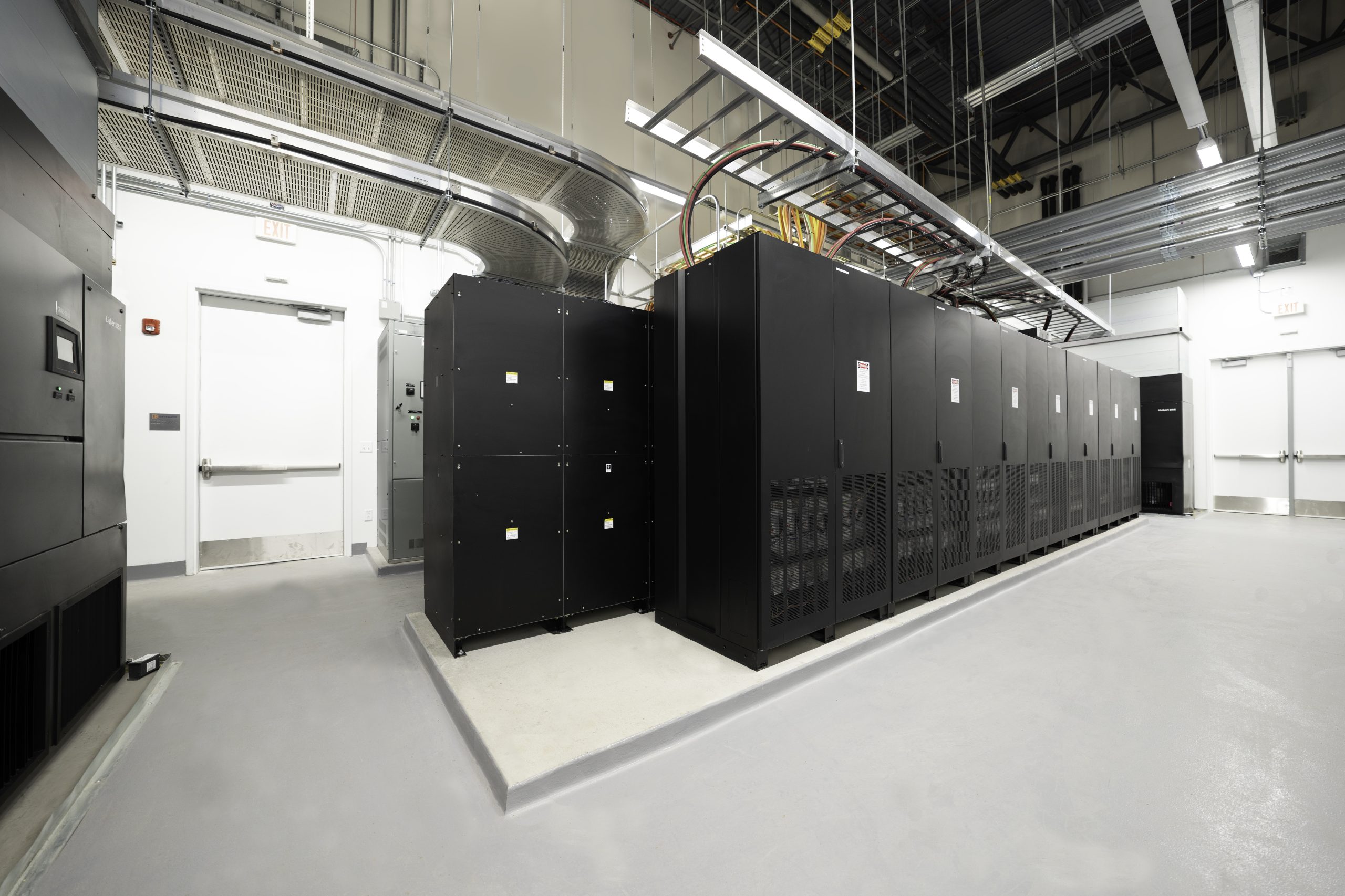

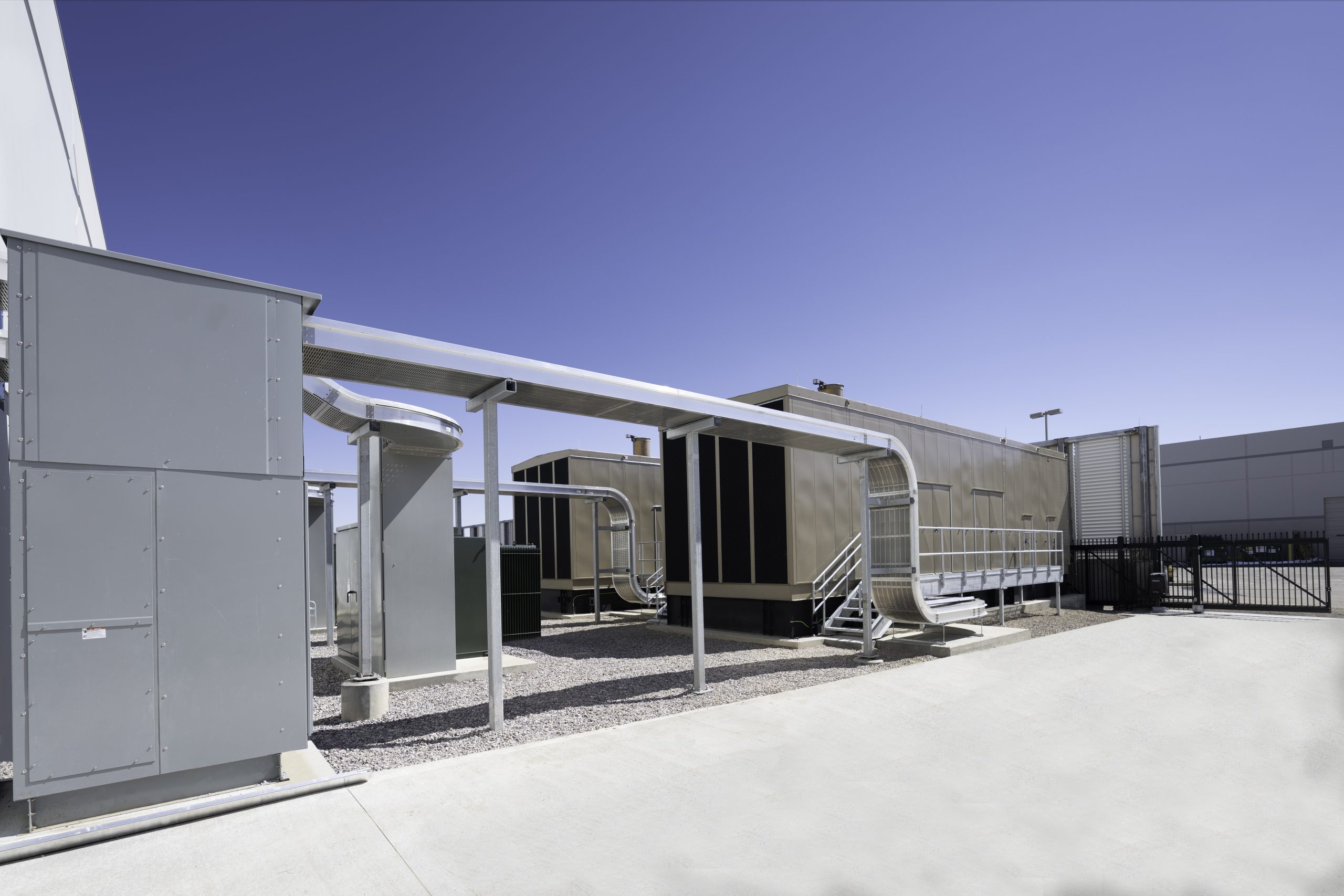

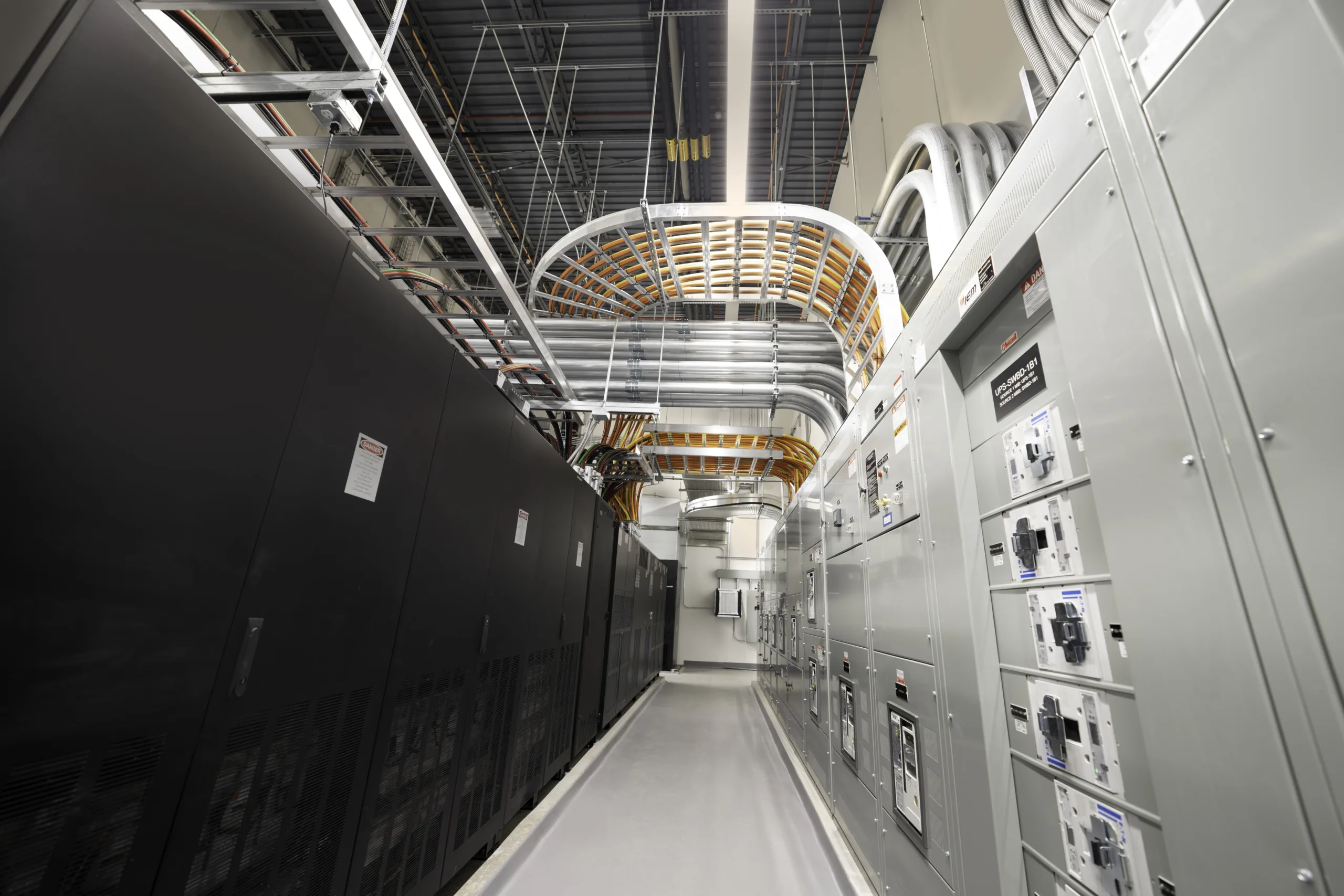

The existing roof was removed and replaced. DEN5 equipment installations included (2) 3MW critical power generators, 2 docking stations and transformers, (1) 450KW house power generator for life/safety systems, (16) 250KW CRAC units in the data hall with associated condensing units, and (4) 25KW CRAC units in power rooms with corresponding condensing units on the dunnage platform.
